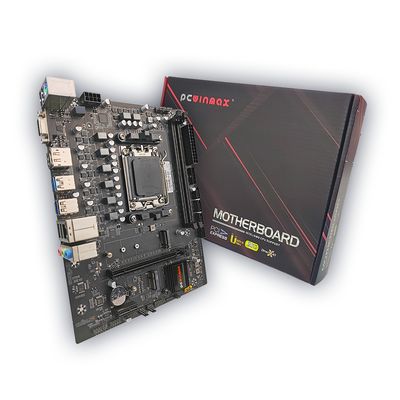

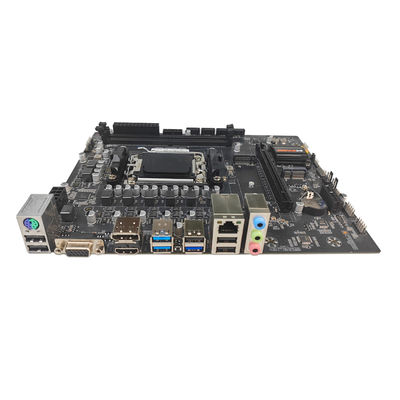

PCWINMAX B560 MATX Gaming Motherboard LGA1200 Socket B560 Chipset Supports 11th and 10th Gen Intel Processors
| Plaats van herkomst | CHINA |
|---|---|
| Merknaam | PCWINMAX |
| Certificering | CE FCC |
| Modelnummer | B560 |
| Min. bestelaantal | 2 |
| Prijs | 29.99~69.99$ |
| Levertijd | 3~7 het werkdagen |
| Betalingscondities | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Levering vermogen | 100 stuk 5days |
Contacteer me voor vrije steekproeven en coupons.
WhatsApp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Haven | SATA, PCI Express X16 | Sollicitatie | Desktop/thuis/werkstation |
|---|---|---|---|
| Chipset fabrikant | Intel | Sockettype | LGA1200 |
| Vormfactor | Micro-ATX | Geheugentype | DDR4 |
| maximale RAM-capaciteit | 64 GB | grafische kaarttype | Geïntegreerde CPU-ondersteuning |
Productomschrijving
PCWINMAX B560 MATX Gaming Motherboard LGA1200 Socket B560 Chipset Supports 11th and 10th Gen Intel Processors
Description:
The B560 LGA1200 motherboard is engineered for Intel 10th and 11th Gen Core processors, delivering powerful performance and excellent system stability. Supporting dual-channel DDR4 memory and high-speed PCIe 4.0, it’s perfect for gaming, design, and productivity workloads. With modern connectivity options including M.2 NVMe, HD, and USB 3.2, this motherboard provides the ideal foundation for a high-performance desktop PC.
Features:
1. Supports Intel 10th & 11th Gen LGA1200 processors
2. Dual-channel DDR4 memory support up to 3200MHz
3. PCIe 4.0 x16 slot for next-gen GPUs
4. M.2 NVMe SSD slot for ultra-fast storage
5. HD, VGA, and DP video output options
6. USB 3.2 Gen1 ports for high-speed connectivity
7. Gigabit LAN and HD Audio support
8. Durable power design ensures stable performance under heavy load
Parameter:
| CPU |
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors,
Pentium® Gold and Celeron® Processors
|
| Chipset | B560 Chipset |
| Memory |
2 x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
|
| Graphics |
1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1 x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
|
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
|
| LAN |
1 x Reatek 8111H 1000M/bps LAN controller
|
| Expansion Slots |
1 x PCIe x16 slot (From CPU)
- Support up to PCIe 4.0 for 11th Gen Intel® CPU
- Support up to PCIe 3.0 for 10th Gen Intel® CPU
1 x PCIe 3.0 x1 slot (From PCH)
1 x M.2 slot (NVme PCIE GEN3X4)
|
| I/O Connectors |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
3 x SATA 6Gb/s connectors
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 3-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Serial port connector
1 x Clear CMOS jumper
|
| Accessories | 1x motherboard;1x SATA Cable;1x Mainboard Driver;1x baffle;1x User Manual |
Quality Assurance:
To ensure optimal performance, all products undergo rigorous testing before shipment. This product is thoroughly tested to guarantee its reliability, stability, and compatibility. Rest assured that you are receiving a top-quality product that meets industry standards.
Our advantages:
Superior Quality and Customization
As an original manufacturer with over 20 years of industry experience, we provide premium quality products that can be fully customized to your exact specifications.
Competitive Pricing
By working directly with the manufacturer, you get the most favorable pricing on unique, tailored solutions without any middleman markups.
Fast Turnaround Time
We pride ourselves on our ability to deliver finished products within 3-7 working days to meet your rapid deployment needs.
Global Reach
With happy customers from over 200 countries, we have the proven capability to reliably ship anywhere in the world.
Trust Our Experience and Dedication
With two decades of focus in this market, we have the proven track record required to expertly guarantee the purchase well.
FAQ
1.Do your products come with a warranty?
Yes, all our products are backed by a comprehensive warranty and professional after-sales support service. Contact us for any issues or questions.
2.How do you ensure quality?
We have rigorous quality control including pre-production samples, final inspections, and testing before any product ships to customers. This guarantees you receive electronics that work flawlessly.
3.What products are available?
We offer a wide range of computer components including graphics cards, motherboards, RAM, SSDs, HDDs, CPUs, and more. Ask our sales team about our full catalog.
4.What additional services are offered?
Samples - Test out products before purchase
Daily price lists - Stay updated on the latest pricing
Technical support - Our experts are here to help
